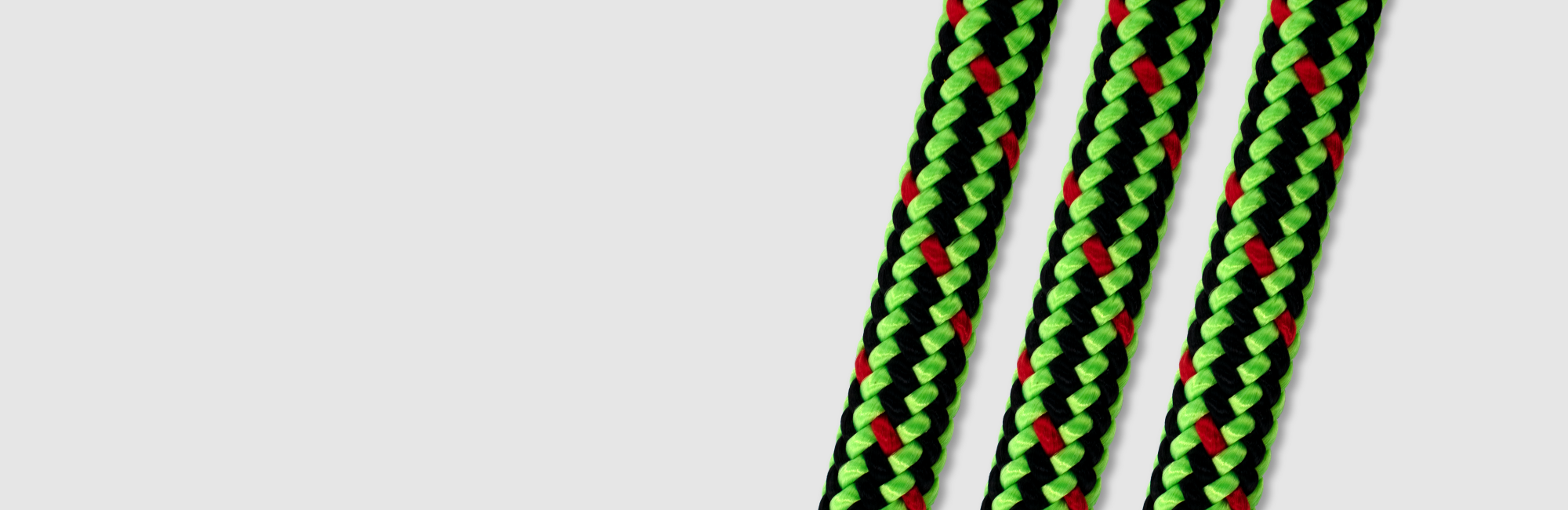

XTC-24: Arrow Frog 11.7mm
This climbing line is distributed by Cannings and their customers.
Innovative lightweight arborist climbing lines in 11.7mm sizing. Our range of 24 carrier products is ideally suited for MRS or SRS climbing with compatible hardware or hitch tending climbing systems.
Key Features
- Competition grade
- Smoothest cover for mechanical ascension
- Lowest elongation results in minimal bounce
- Smaller diameters are also favorable for recreational climbers
- ANSI Z133 100% polyester climbing lines
- Perfect balance of strength & low elongation
- Compatible with a wide range of both MRS & SRS climbing systems
Have any questions? Contact Us online!
How to Buy
XTC-24 Arrow Frog Specifications and Data
| Product (Text) | Diameter (mm) | Average Break Strength *(Lbs) | Suggested Design Factor 10:1 **(Lbs) | Weight (Lbs/100f) |
| Arrow Frog | 11.7 | 6,500 | 6 50 | 6.5 |
| Product (Text) | Diameter (mm) | Average Break Strength *(kg) | Suggested Design Factor 10:1 **(kg) | Weight (Kg/100m) |
| Arrow Frog | 11.7 | 2948 | 295 | 9.7 |
* Average break strength is based on spliced rope or capstans samples. Knots and abrupt bends significantly reduce the strength of all ropes and lower the design factor.
** Suggested design factor is based on static or moderately dynamic lifting/pulling operations. Instantaneous changes in load, up or down, in excess of 10% of the rope’s suggested design factor constitute hazardous shock load and would void the suggested design factor recommendation. The end user is responsible for choosing the correct design factor specific to their application.
Specific Gravity: 1.38
